Product Brochures

Product brochures are provided on this page for viewing and downloading.

Please respect our copyright as stated here.

Please be aware of the sizes of these documents. Depending on your lines speed, some of them might take a while to come down the line.

For any further assistance or information, please contact us by phone or email

Clicking on images or the red button will open brochures in a new tab.



GPM Bearing Range Gear Pumps Brochure

Gear Pump Manufacturing

Bearing Range

Series 120
Series 125
Series 130
Series 131
Series 150
Series 151
Series 175
Series 176

Hydraulic Pumps

  • Pumps
  • Motors
  • Flow Dividers
  • Add-a-Pumps
  • Spare Parts
Speeds up to: 2400 RPM
Pressure up to 205 BAR
Displacements between 16 cc/rev to 200 cc/rev

Brochure is a PDF. Size 3.2mb

GPM Bushing Range Gear Pumps Brochure

Gear Pump Manufacturing

Bushing Range

Series 215
Series 230
Series 250
Series 265

Hydraulic Pumps

  • Pumps
  • Motors
  • Flow Dividers
  • Add-a-Pumps
  • Step-Down Pumps
  • Spare Parts
Speeds up to: 3000 RPM
Pressure up to 240 BAR
Displacements between 10 cc/rev to 147 cc/rev

Brochure is a PDF. Size 3.0mb

GPM PTO Gear & Piston Pumps Brochure

Gear Pump Manufacturing

PTO Truck Pumps – Gear, Piston & Dump Ranges

Gear Pumps
GP3 Series
GP3T Series
Piston Pumps
Gp4 Series
Dump Pumps
GP110 Series
GP112 Series
GP113 Series

Hydraulic Pumps

GEAR PUMPS
Speeds up to: 3000 RPM
Pressure up to 300 BAR
Displacements between 24.1 cc/rev to 147 cc/rev

Brochure is a PDF. Size 1.2mb

View Brochure

Download Brochure

PISTON PUMPS
Speeds up to: 1800 RPM
Pressure up to 350 BAR
Displacements between 50 cc/rev to 80 cc/rev

DUMP PUMPS
Speeds up to: 2400 RPM
Pressure up to 205 BAR
Displacements between 62 cc/rev to 104.4 cc/rev

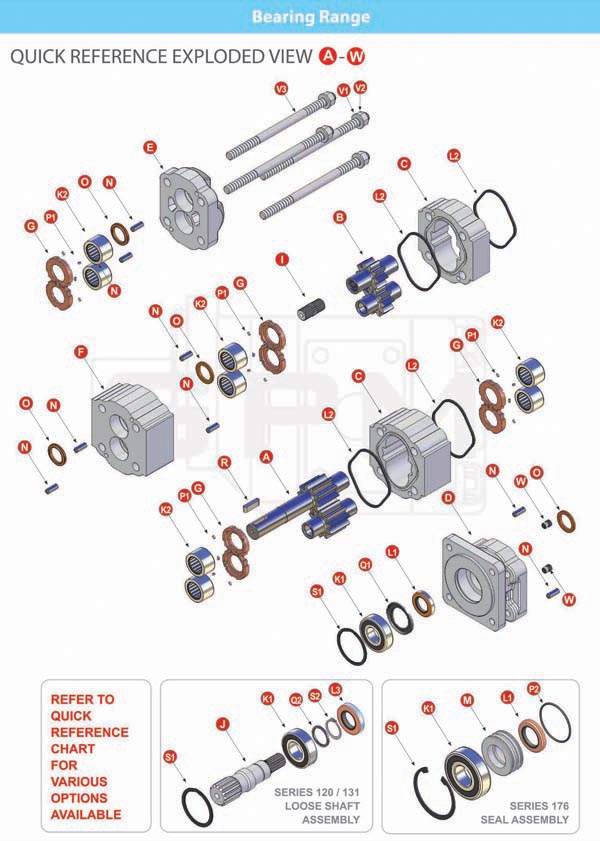

GPM Bearing Gear Pumps Exploded View Brochure

Gear Pump Manufacturing

Bearing Pump Exploded

Includes a Quick Reference Parts List

Brochure is a PDF. Size 1.5mb

GPM Bushing Gear Pumps Exploded View Brochure

Gear Pump Manufacturing

Bushing Pump Exploded

Includes a Quick Reference Parts

Brochure is a PDF. Size 1.5mb
