GPM Hydraulic Gear Pumps

Bearing Pump Blue - 450 x 466

Bearing Gear Pump Range

Series 120     Series 125
Series 130     Series 131
Series 150     Series 151
Series 175     Series 176
Hydraulic
  • Pumps
  • Motors
  • Flow Dividers
  • Add-a-Pumps
  • Spare Parts

Speeds up to: 2400 RPM
Pressure up to 205 BAR
Displacements between 16cc/rev to 200 cc/rev

Bearing Gear Pump Specifications
Page-12 - Bearing Range Pump Specifications
Major Features, Interchangeability and PL Factor

PUMPS & MOTORS

Fluid Power for Mobile Equipment

GPM hydraulic pumps and motors are particularly well suited to mobile equipment applications; they are designed for extreme duty cycles, and continuous heavy duty operation. Whilst the equipment is of a simple yet rugged design, it is manufactured to extremely precise tolerances.

Pumps are available in capacities ranging from 11 cc/rev to 200 cc/rev for each gear section. Several sections can be combined into one assembly. A wide selection of SAE and ANSI mounting flanges and drive shafts are available for all drive units. Pipe thread, 0-ring seal, and split flange ports are available in both metric and SAE standards.

GPM pumps are manufactured under statistical analysis process control which is monitored by the South African Bureau of Standards to an ISO 9001-2008 quality management system.

Major Features

Sectional Construction: Standard parts, cast from high strength grey iron, can be assembled in a wide variety of configurations to suit almost any application.

Multiple pump units: Several pump sections can be combined in a single drive to eliminate multiple drive P.T.O units.

Precision matched gears: All gears are manufactured from high alloy forged bars, surfaces are precision finished and each gear pair is matched for maximum efficiency. The deep 1 0-tooth pattern gives maximum output per revolution whilst ensuring low pulsation frequency.

Bearings: Heavy duty roller bearings are utilized on all gear journals to reduce wear caused by contamination.

Motors: are available with capacities ranging from 0. 75kW to 75kW. Basically similar in design to pumps, they are engineered for extreme heavy duty applications, with high efficiency characterists. Motor speed is in direct proportion to the volume of oil delivered to the inlet port and output torque is in proportion to the pressure supplied to the motor. All other equipment required to match our pumps and motors is readily available.

Interchangability

GPM hydraulic equipment is directly interchangeable with the other internationally recognized SAE pumps and motors.

GPM equipment is sold in component form but units can be assembled and tested to meet your particular requirements.

PL Factor

Each section of a pump or motor should be regarded as a single unit with corresponding power input requirements. The entire input horsepower is fed through the drive shaft, the power delivered to or from the unit is limited by the strength of the shaft. The limit is defined as the “PL” factor, the “P” being the operating pressure in PSI and the “L” the sum of the gear widths In Inches.

In multiple units the “PL” must be calculated for each connecting shaft and must include the sum of the gear widths driven by it. (Each shaft has a unique “PL” factor as can be seen in the table below)

Pressure (PSI) x Total Gear Width (Inches) = PL Factor

PL FACTOR MUST NOT EXCEED FIGURE SHOWN IN CHART FOR SHAFT TYPE

Page-05 - PL Factor

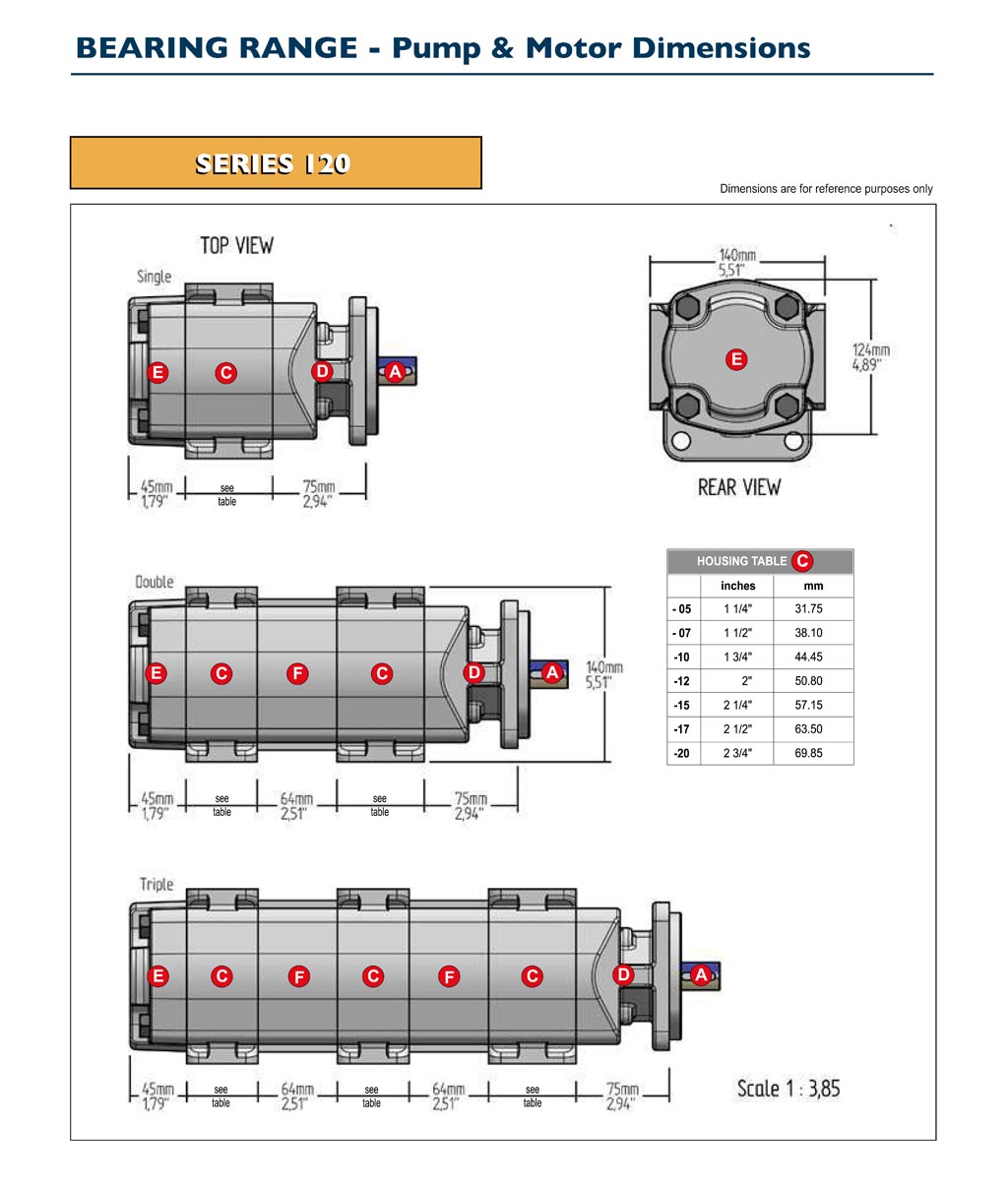

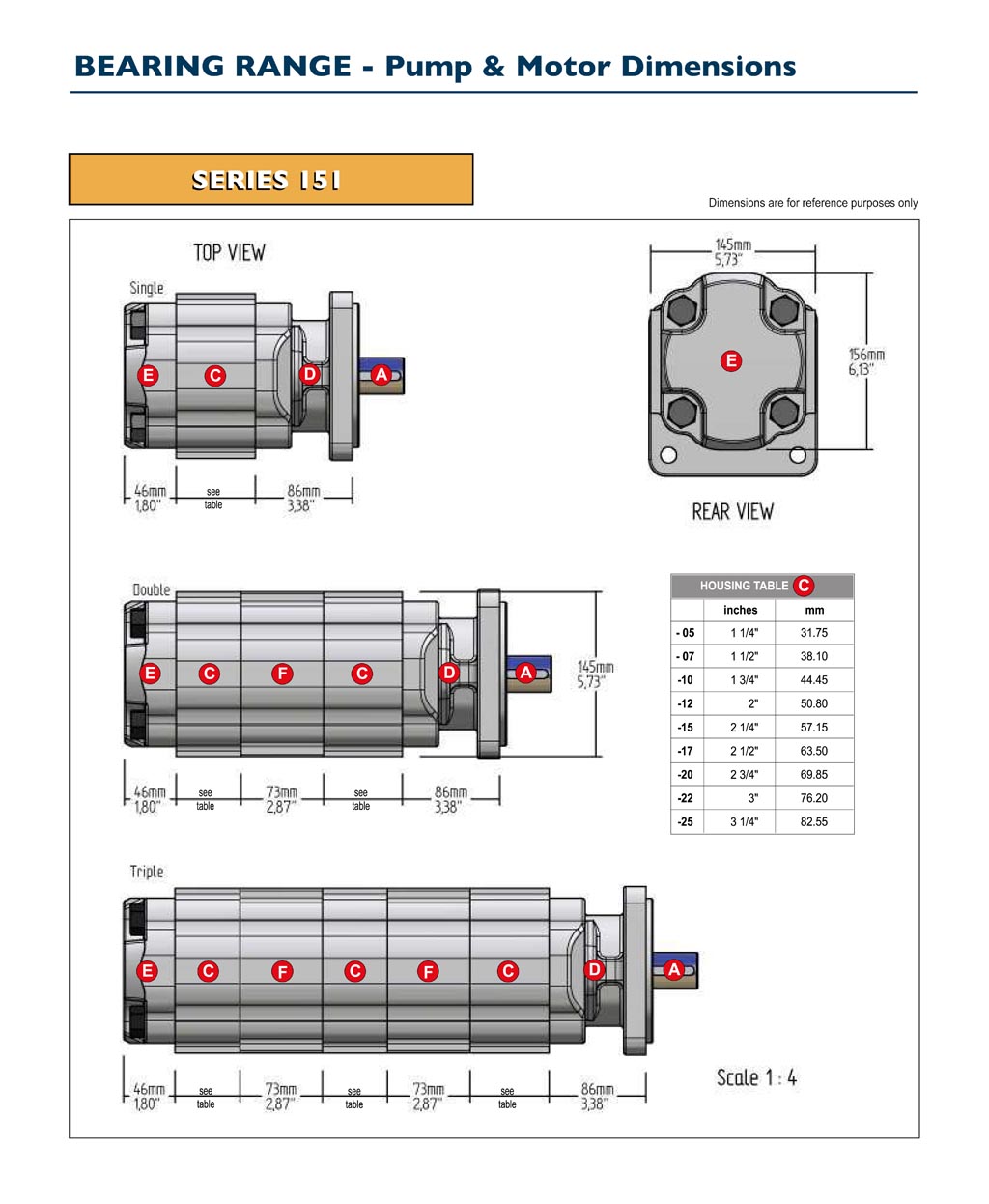

Pump & Motor Dimensions - Bearing Range
Page-14 - Pump & Motor Dimensions - Bearing Range
Parts for Hydraulic Pumps
Page-06 - Parts for Hydraulic Pumps
Parts for Hydraulic Pumps
Page-07 - Parts for Hydraulic Pumps.
Quick Reference - Parts List A-D
Page-08 - Quick Reference - Parts List A-D
Quick Reference - Parts List E-J
Page-09 - Quick Reference - Parts List E-J
Quick Reference - Parts List J-S
Page-10 - Quick Reference - Parts List J-S
Quick Reference - Parts List V-W
Page-11 - Quick Reference - Parts List V-W
Pump Builder - Steps 1-8
Page-16 - Pump Builder - Steps 1-8
Pump Builder - Steps 9-12
Page-17 - Pump Builder - Steps 9-12
Technical Information - Bearing Range - Solid Shaft Gear Set
Page-18 - Technical Information - Bearing Range - Solid Shaft Gear Set
Technical Information - Bearing Range - Loose Gear Sets
Page-19 - Technical Information - Bearing Range - Loose Gear Sets
Technical Information - Bearing Range - Gear Housings
Page-20 - Technical Information - Bearing Range - Gear Housings
Technical Information - Bearing Range - Gear Housings
Page-21 - Technical Information - Bearing Range - Gear Housings

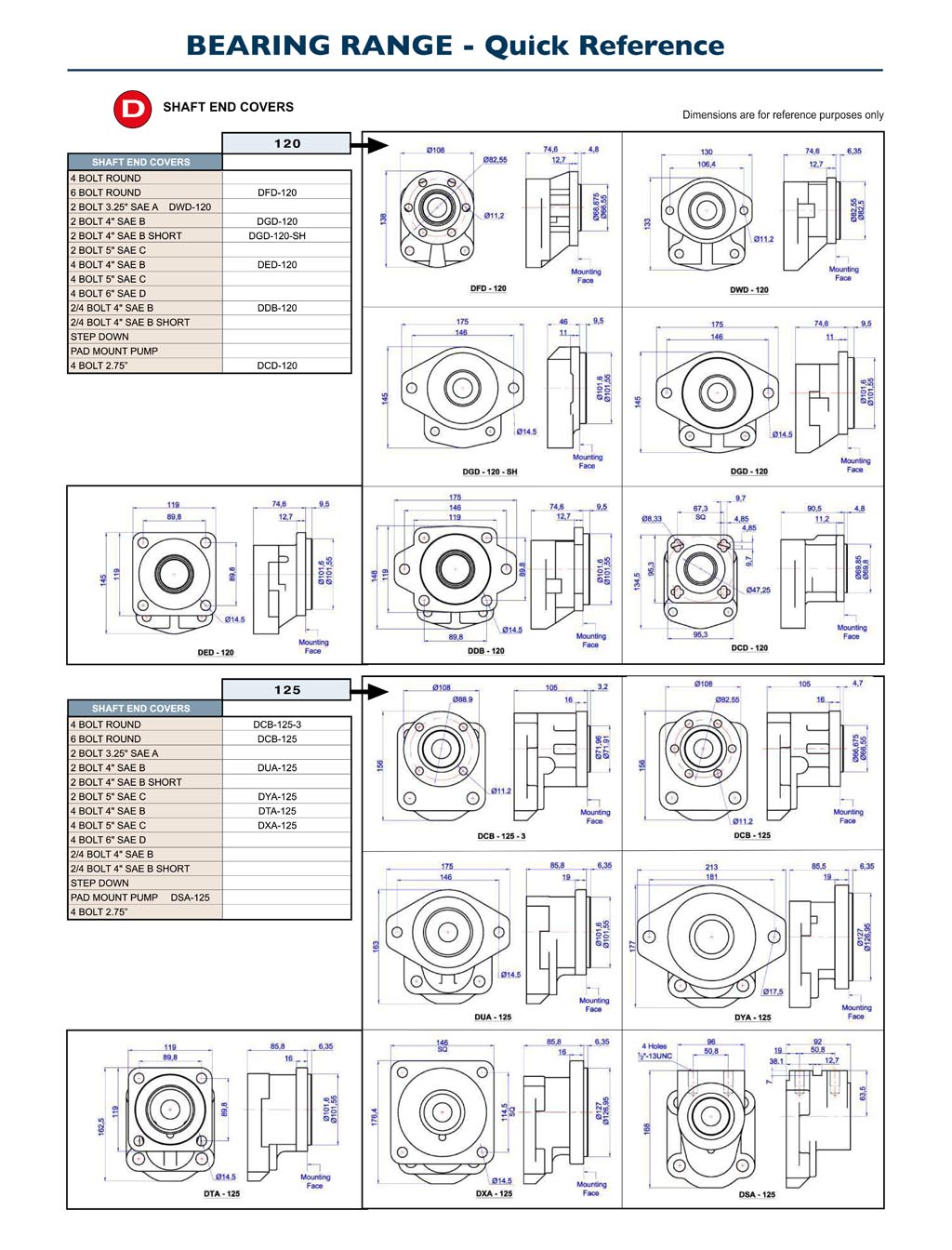

Technical Information - Bearing Range - Shaft End Covers
Page-22 - Technical Information - Bearing Range - Shaft End Covers
Technical Information - Bearing Range - Shaft End Covers
Page-23 - Technical Information - Bearing Range - Shaft End Covers
Technical Information - Bearing Range - Shaft End Covers
Page-24 - Technical Information - Bearing Range - Shaft End Covers
Technical Information - Bearing Range - Port End Covers
Page-25 - Technical Information - Bearing Range - Port End Covers
Technical Information - Bearing Range - Port End Covers
Page-26 - Technical Information - Bearing Range - Port End Covers
Technical Information - Bearing Range - Port End Covers
Page-27 - Technical Information - Bearing Range - Port End Covers

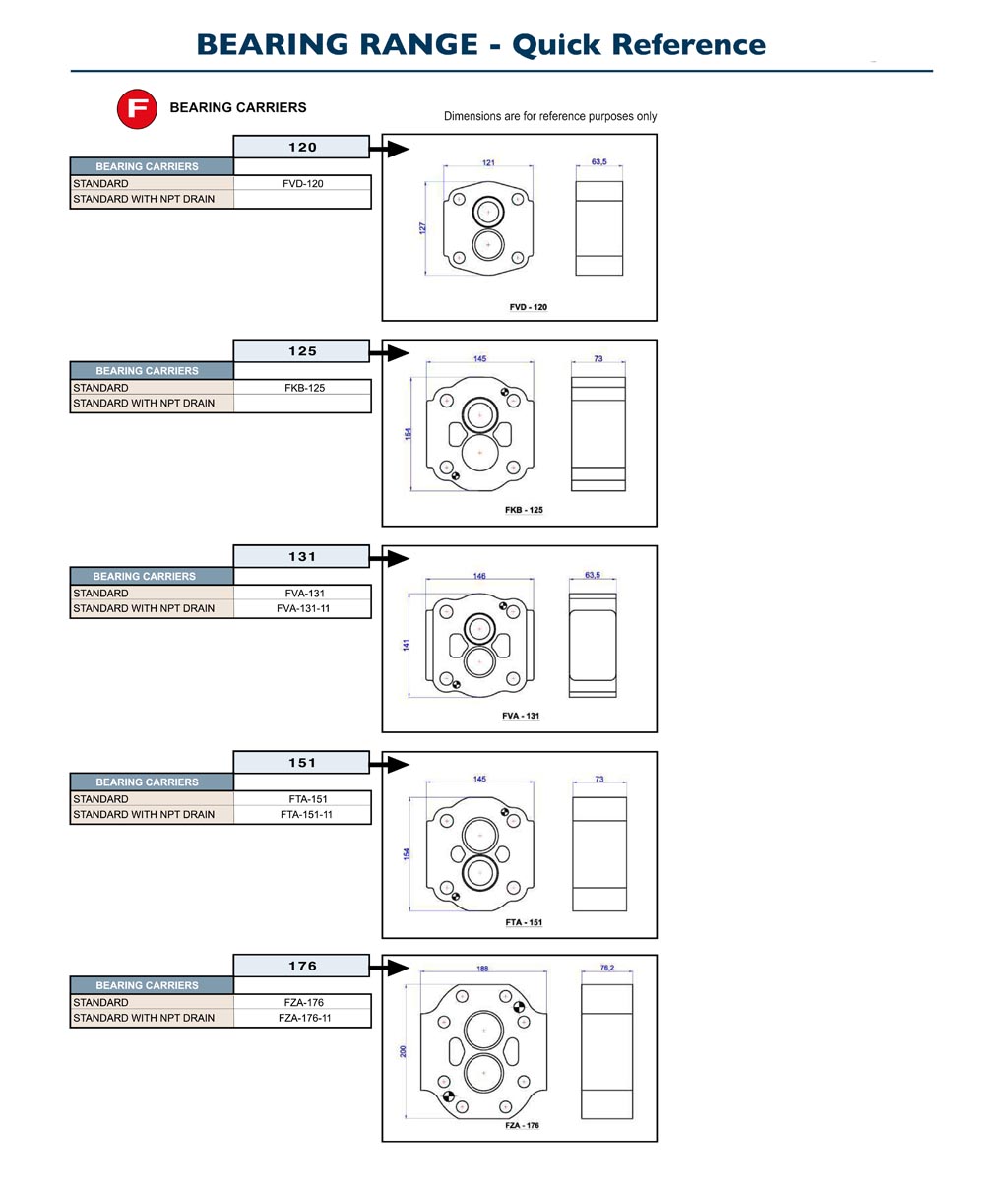

Technical Information - Bearing Range - Bearing Carriers
Page-28 - Technical Information - Bearing Range - Bearing Carriers
Technical Information - Bearing Range - O Bronze Pressure Ring
Page-29 - Technical Information - Bearing Range - O Bronze Pressure Ring
Technical Information - Bearing Range - Loose Shaft
Page-30 - Technical Information - Bearing Range - Loose Shaft
Technical Information - Bearing Range - Loose Shaft
Page-31 - Technical Information - Bearing Range - Loose Shaft
Technical Information - Bearing Range - Loose Shaft
Page-32 - Technical Information - Bearing Range - Loose Shaft
Technical Information - Bearing Range - Loose Shaft
Page-33 - Technical Information - Bearing Range - Loose Shaft
GP 120 Series Gear Pump
Page-51 - GP 120 Series Gear Pump
GP 120 Series Gear Pump
Page-52 - GP 120 Series Gear Pump
GP-GM 131 Series Gear Pump-Motor
Page-53 - GP-GM 131 Series Gear Pump-Motor
GP 131 Series Gear Pump
Page-54 - GP 131 Series Gear Pump
GM 131 Series Gear Motor
Page-55 - GM 131 Series Gear Motor
GP-GM 151 Series Gear Pump-Motor
Page-56 - GP-GM 151 Series Gear Pump-Motor
GP 151 Series Gear Pump
Page-57 - GP 151 Series Gear Pump
GM 151 Series Gear Motor
Page-58 - GM 151 Series Gear Motor
GP-GM 176 Series Gear Pump-Motor
Page-59 - GP-GM 176 Series Gear Pump-Motor
GP 176 Series Gear Pump
Page-60 - GP 176 Series Gear Pump
GM 176 Series Gear Motor
Page-61 - GM 176 Series Gear Motor
Pump Identification
Page-77 - Pump Identification

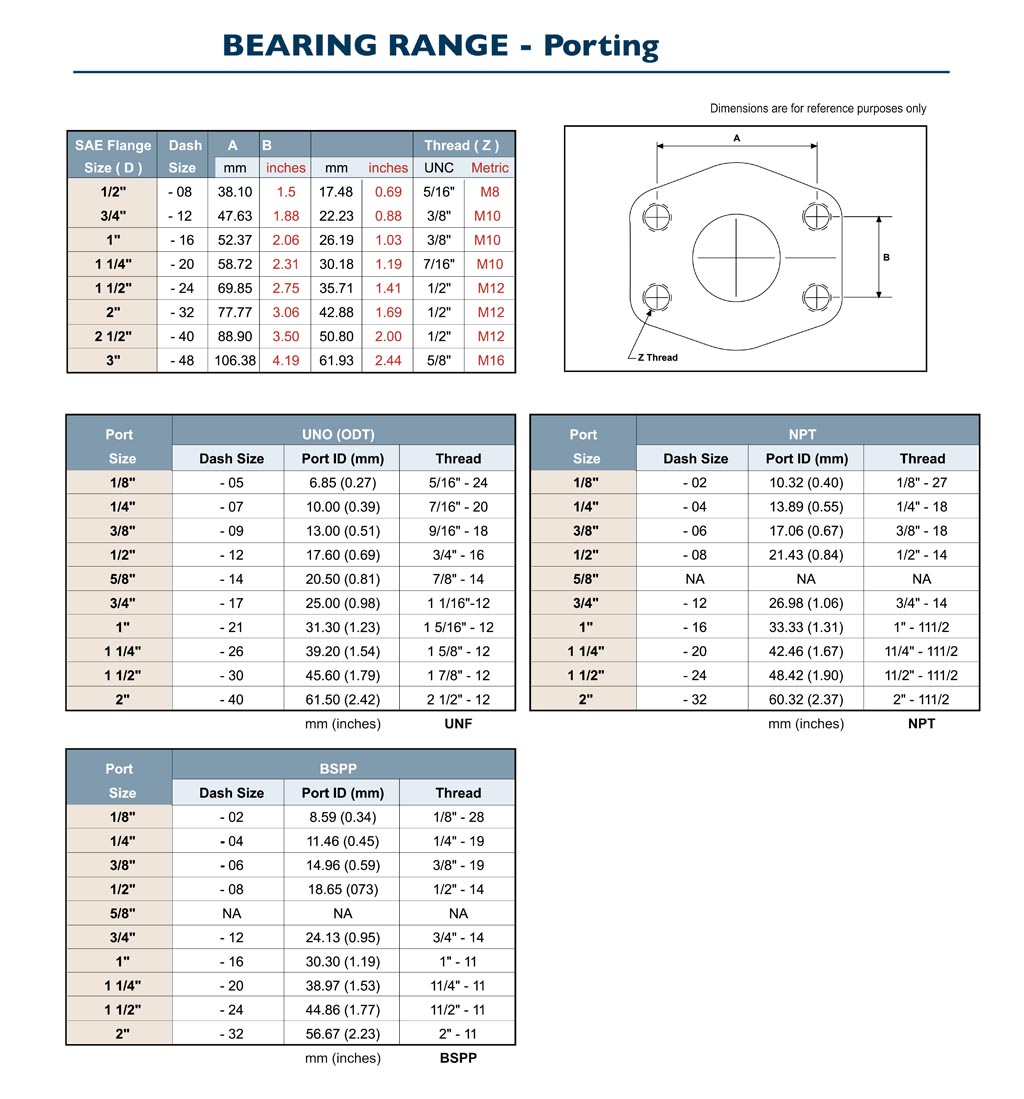

Port Identification
Page-78 - Port Identification

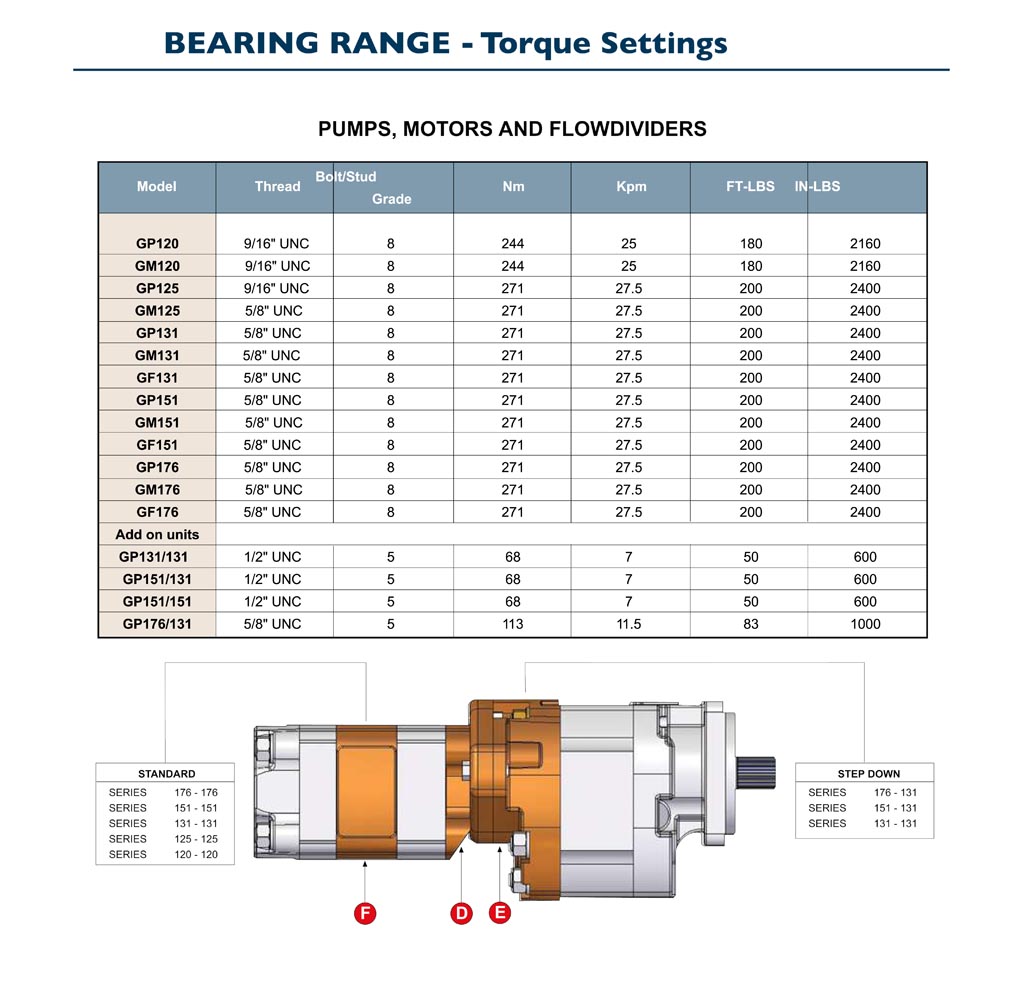

Torque Settings
Page-79 - Torque Settings
